Q70-39
Point-to-Point

Q70-39

480 Mbps
70.5 — 76 GHz
Detailed specification
pdf, 295.16 KB
Request a quote Loading

Features

Please scroll horizontally to see the whole table.
DESCRIPTION
DescriptionQuanta 70 Q70-39, 70 GHz point-to-point unit, net throughput up to 480 Mbps, integrated dual-pol antenna, 39 dBi, 2x2 deg
Net throughputup to 480 Mbps
Recommended distancesup to 10 km
RADIO
Radio technologySC-FDE
Modulation coding schemesfrom BPSK 1/4 to QAM64 5/6
Transmit powerup to 11 dBm
Frequency range70500-76000 MHz
Channel width125 MHz
Antenna39 dBi
WIRED INTERFACES
Wired Interfaces1x Combo port GigabitEthernet/SFP
FORM FACTOR AND DIMENSIONS
Outdoor Unit (ODU) 255 x 226 x 189 mm, 3,1 kg

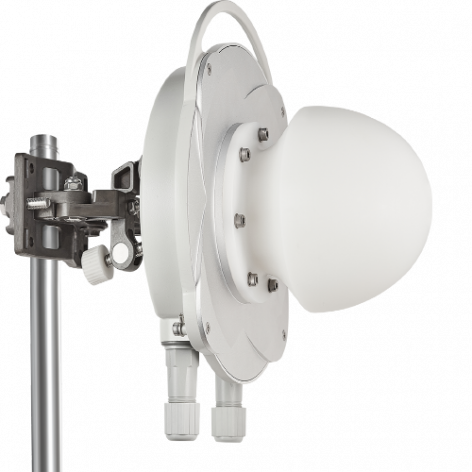

APPEARANCE

PACKING LIST
DescriptionPart NumberQuantity
Outdoor UnitQ70-391 pcs.
Power Supply IDU-CPE-G(24W) 1 pcs.
Power Cord IEC C5 1 pcs.
Cable Gland INFINET-GLAND-V3.1 1 pcs.
Cable Gland INFINET-GLAND-V4 1 pcs.
Standard RJ-45 connector TPR-8P8C 1 pcs.
Shielded RJ-45 connector 8P8C-U-C5-SH 1 pcs.
RJ-45 Plug Cap TPC-1G 1 pcs.
Mounting kit MONT-KIT-85PW 1 pcs.
Quick Start Guide - 1 pcs.
